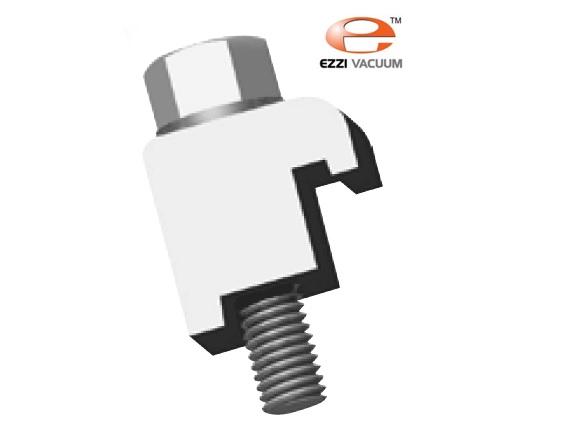

The Single Wall Clamp model No. EV02017 is manufactured in the ISO size 63-100 having dimensions M8,35,23.5 respectively and is composed of Aluminum. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings. The clamps are utilized to join an ISO flange to a pump, chamber or gate valve.

The Single Wall Clamp model No. EV02018 is manufactured in the ISO size 160-250 having dimensions M10,35,23.5 respectively and is composed of Aluminum. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings. The clamps are utilized to join an ISO flange to a pump, chamber or gate valve.

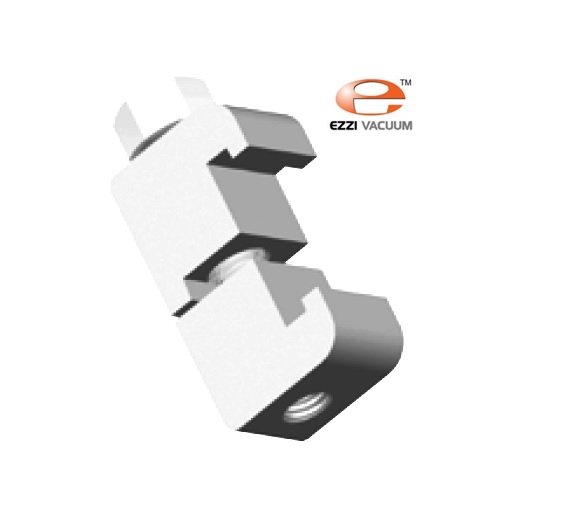

The Double Wall Clamp model no. EV02019 is manufactured in the ISO size 63-100 having dimensions M8,45 respectively and is composed of Aluminium. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings. The clamps can be utilized to join an ISO flange to a pump, chamber or gate valve.

The Double Wall Clamps model no. EV02020 is manufactured in the ISO size 160-250 having dimensions M10,45 respectively and is composed of Aluminium. ISO Flange Series are comprised of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings. The clamps can be utilized to join an ISO flange to a pump, chamber or gate valve.

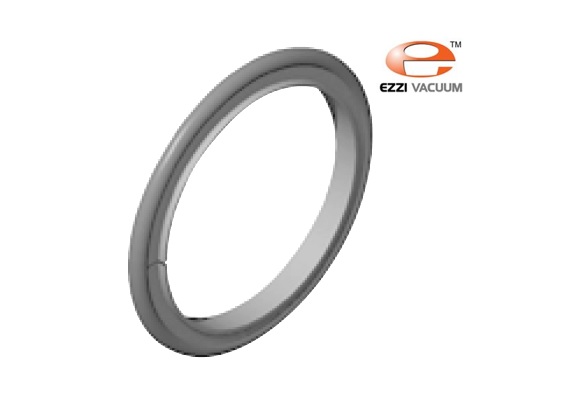

The Centering Ring with O-Ring model no.EV02021 is available in the ISO size 63, having dimensions 68,70,8,3.9 respectively.The Centering Ring is manufactured in 304 stainless steel and O'Ring is composed of Viton. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.Flanges and seals are designed to be tightened to metal to metal contact.

The Centering Ring with O-Ring model no. EV02022 is available in the ISO size 80, having dimensions 81,82.6,8,3.9 respectively.The Centering Ring is manufactured in 304 stainless steel and O'Ring is composed of Viton. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.Flanges and seals are designed to be tightened to metal to metal contact.

The Centering Ring with O-Ring model no.EV02023 is available in the ISO size 100 having dimensions 100,102,8,3.9 respectively.The Centering Ring is manufactured in 304 stainless steel and O'Ring is composed of Viton. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.Flanges and seals are designed to be tightened to metal to metal contact.

The Centering Ring with O-Ring model no.EV02024 is available in the ISO size 160, having dimensions 148,153,8,3.9 respectively.The Centering Ring is manufactured in 304 stainless steel and O'Ring is composed of Viton. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.Flanges and seals are designed to be tightened to metal to metal contact.

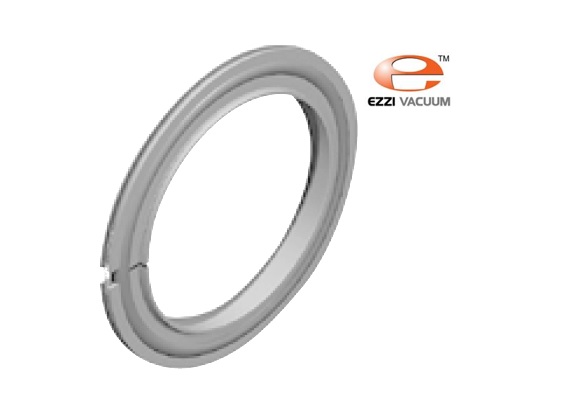

The Centering Ring with O' Ring and Outer Ring model no. EV02025 are available in the ISO size 63,having dimensions 68,70,8,3.9,94 respectively.The centering ring is composed of 304 stainless steel material,O'ring of viton and outer ring of aluminium. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.

The Centering Ring with O' Ring and Outer Ring model no. EV02026 are available in the ISO size 80,having dimensions 81,82.6,8,3.9,109 respectively.The centering ring is composed of 304 stainless steel material,O'ring of viton and outer ring of aluminium. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.

The Centering Ring with O' Ring and Outer Ring model no. EV02027 are available in the ISO size 100,having dimensions 100,102,8,3.9,128 respectively.The centering ring is composed of 304 stainless steel material,O'ring of viton and outer ring of aluminium. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.

The Centering Ring with O' Ring and Outer Ring model no. EV02028 are available in the ISO size 160,having dimensions 148,153,8,3.9,179 respectively.The centering ring is composed of 304 stainless steel material,O'ring of viton and outer ring of aluminium. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.

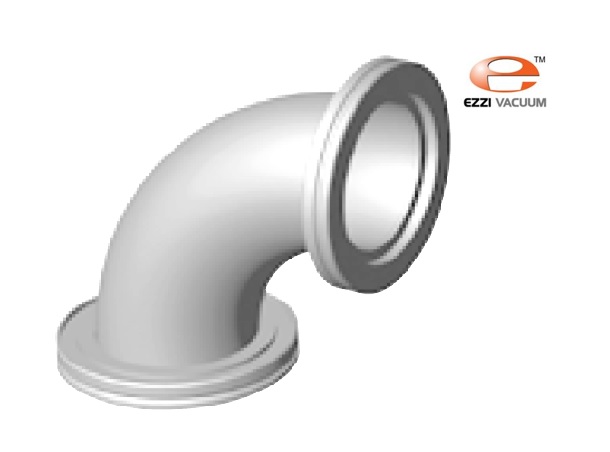

The 90 Degree Elbow model no. EV02029 are available in the ISO size 63 having dimensions 138.4,63.5,95 respectively and is composed of 304 stainless steel material. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.The smooth and even radius 90 degree elbow vacuum pipe fittings have standard modulus.They are utilized to make a right angle alteration of direction between two ISO-KF flange faces.

The Elbows (90 Degrees) model no. EV02030 are available in the size: ISO 80, manufactured in dimensions 166.9,76.2,110 and composed of 304 stainless steel material. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.The smooth and even radius 90 degree elbow vacuum pipe fittings have standard modulus.They are utilized to make a right angle alteration of direction between two ISO-KF flange faces.

The 90 Degree Elbow model no. EV02031 are available in the ISO size 100 having dimensions 217.7,101.6,130 respectively and is composed of 304 stainless steel material. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.The smooth and even radius 90 degree elbow vacuum pipe fittings have standard modulus.They are utilized to make a right angle alteration of direction between two ISO-KF flange faces.

The 90 Degree Elbow model no. EV02032 are available in the ISO size 160 having dimensions 235.2,152.4,180 respectively and is composed of 304 stainless steel material. ISO Flange Series are made of two smooth face flanges clamped together with a blend of metal centering rings, and elastomeric O-Rings.The smooth and even radius 90 degree elbow vacuum pipe fittings have standard modulus.They are utilized to make a right angle alteration of direction between two ISO-KF flange faces.

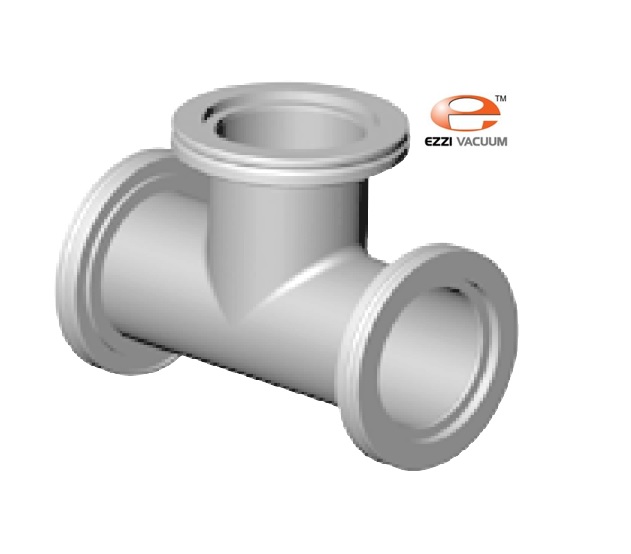

The Tee model no.EV02033 are available in the ISO size 63 having dimensions 82.8,63.5,95,165.6 respectively and is composed of 304 stainless steel material.Tees are the components of vacuum piping systems and are utilized to give a 90 degree branch and have a standard modulus.

The Tee model no.EV02034 are available in the ISO size 80 having dimensions 89.15,76.2,110,178.3 respectively and is composed of 304 stainless steel material.Tees are the components of vacuum piping systems and are utilized to give a 90 degree branch and have a standard modulus.

The Tee model no.EV02035 are available in the ISO size 100 having dimensions 105,101.6,130,210 respectively and is composed of 304 stainless steel material.Tees are the components of vacuum piping systems and are utilized to give a 90 degree branch and have a standard modulus.

The Tee model no.EV02036 are available in the ISO size 160 having dimensions 133.6,152.4,180,267.2 respectively and is composed of 304 stainless steel material.Tees are the components of vacuum piping systems and are utilized to give a 90 degree branch and have a standard modulus.
