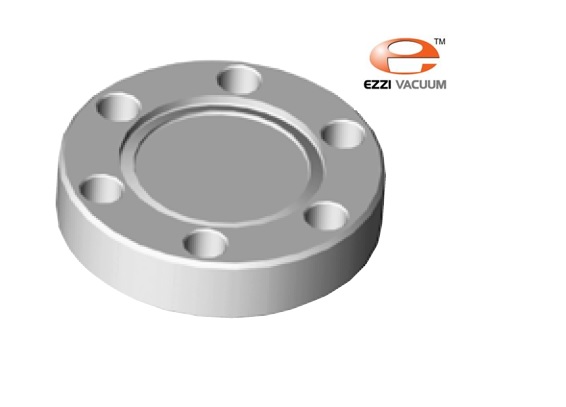

The Blank Flanges Non-Rotatable model no.EV03001 are available in the CF size 34 (1.33") having dimensions 33.8,7.5,4.4*6 respectively and P.C.D 26.9 and is composed of 304 Stainless Steel. The CF Flange connection has high sealing and low leak rate performance, which is due to the presence of gasket material .When the CF Flange is properly fitted, the knife edge is compressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest degrees. The CF Flange is offered , with through holes, or tapped bolt holes.

The Blank Flanges Non-Rotatable model no.EV03002 are available in the CF size 70 (2.75") having dimensions 69.5,12.7,6.7*6 respectively and P.C.D 58.7 and is composed of 304 Stainless Steel. The CF Flange connection has high sealing and low leak rate performance, which is due to the presence of gasket material .When the CF Flange is properly fitted, the knife edge is compressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest degrees. The CF Flange is offered , with through holes, or tapped bolt holes.

The Blank Flanges Non-Rotatable model no. EV03003 are available in the CF size 114 (4.5") having dimensions 113.6,18,8.4*8 respectively and P.C.D 92.1 and is composed of 304 Stainless Steel. The CF Flange connection has high sealing and low leak rate performance, which is due to the presence of gasket material .When the CF Flange is properly fitted, the knife edge is compressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest degrees. The CF Flange is offered , with through holes, or tapped bolt holes.

The Blank Flanges Non-Rotatable model no.EV03004 are available in the CF size 152(6") having dimensions 151.6,20,8.4*16 respectively and P.C.D 130.3 and is composed of 304 Stainless Steel. The CF Flange connection has high sealing and low leak rate performance, which is due to the presence of gasket material .When the CF Flange is properly fitted, the knife edge is compressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest degrees. The CF Flange is offered , with through holes, or tapped bolt holes.

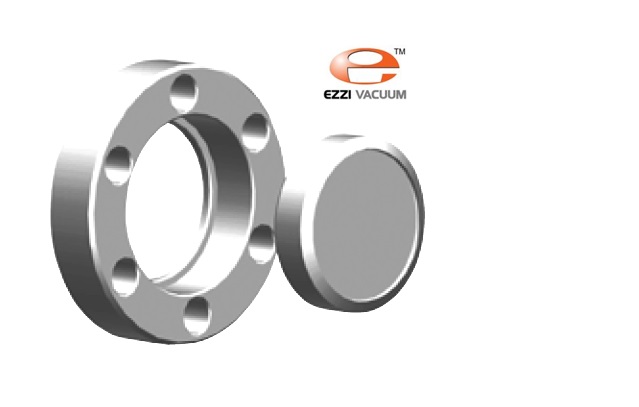

The Blank Flanges Rotatable model no.EV03005 are available in the CF size 34(1.33") having dimensions 33.8,7.5,4.4*6 respectively and P.C.D 26.9 and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Blank Flanges Rotatable model no.EV03006 are available in the CF size 70 (2.75") having dimensions 69.5,12.7,6.7*6 respectively and P.C.D 58.7 and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Blank Flanges Rotatable model no.EV03007 are available in the CF size 114 (4.5") having dimensions 113.6,19,8.4*8 respectively and P.C.D 92.1 and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Blank Flanges Rotatable model no.EV03008 are available in the CF size 152 (6") having dimensions 151.6,21.5,8.4*16 respectively and P.C.D 130.3 and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in outward direction to the flange.The gasket is completely enveloped and will not be affected even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

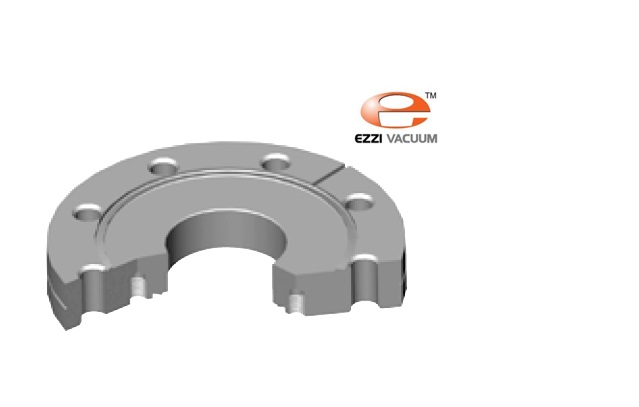

The Reducing Flange model no.EV03009 is available in the CF size 70( 2.75")/34 (1.33") having dimensions 69.5,12.7,15.8,26.9,58.7,6.7*6,M4*6 respectively and is composed of 304 Stainless Steel. The high sealing and the low leak rate offered by the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

The Reducing Flange model no.EV03010 is available in the CF size 114 (4.5")/34 (1.33") having dimensions 113.6,18,15.8,26.9,92.1,8.4*8,M4*6 respectively and is composed of 304 Stainless Steel. The high sealing and the low leak rate offered by the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

The Reducing Flange model no.EV03011 is available in the CF size 114 (4.5")/70 (2.75") having dimensions 113.6,18,38.1,58.7,92.1,8.4*8, M6*6 respectively and is composed of 304 Stainless Steel. The high sealing and the low leak rate offered by the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

The Reducing Flange model no.EV03012 is available in the CF size 152 (6")/70 (2.75") having dimensions 151.6,20,38.1,58.7,130.3,8.4*16,M6*6 respectively and is composed of 304 Stainless Steel. The high sealing and the low leak rate offered by the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

The Reducing Flange model no.EV03013 is available in the CF size 152 (6")/114 (4.5") having dimensions 151.6,20,63.5,92.1,130.3,8.4*16,M8*8 respectively and is composed of 304 Stainless Steel. The high sealing and the low leak rate offered by the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket pulling the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

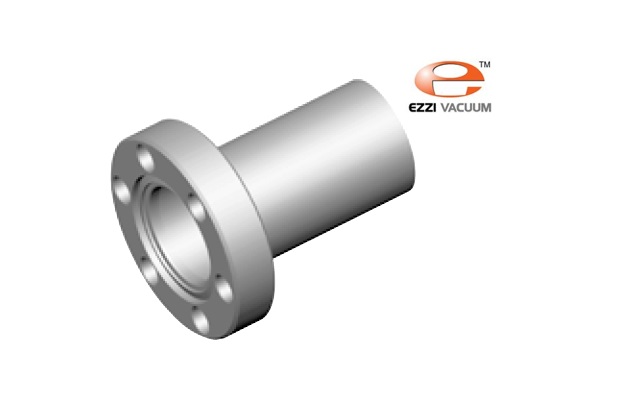

The Half Nipple Non-Rotatable model no.EV03014 are available in the CF size 34(1.33") having dimensions 33.8,38,19.05 respectively and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material. When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.The gasket is completely covered and will not edge out even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Half Nipple Non-Rotatable model no.EV03015 are available in the CF size 70 (2.75") having dimensions 69.5,63,38.1 respectively and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material. When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.The gasket is completely covered and will not edge out even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Half Nipple Non-Rotatable model no.EV03016 are available in the CF size 114 (4.5) having dimensions 113.6,105,63.5 respectively and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material. When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.The gasket is completely covered and will not edge out even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

The Half Nipple Non-Rotatable model no.EV03017 are available in the CF size 152 (6") having dimensions 151.6,135,101.6 respectively and is composed of 304 Stainless Steel.The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material. When the CF Flange is correctly assembled, the knife edge is compressed onto the flat copper gasket forcing the seal material outwards to the flange.The gasket is completely covered and will not edge out even under the highest temperatures.The CF Flange is available with through holes, or tapped bolt holes.

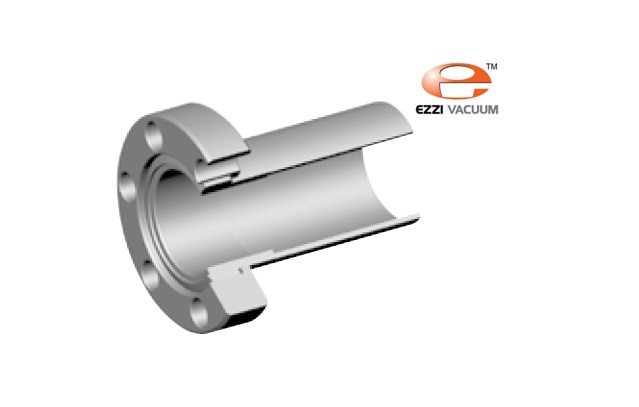

The Half Nipple Rotatable model no.EV03018 are available in the CF size 34 (1.33") having dimensions 33.8,38,19.05 respectively and is composed of 304 stainless steel material. The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket forcing the seal material in outward direction to the flange.The gasket material is completely covered and will not edge out even under the highest degrees.The CF Flange is available with through holes, or tapped bolt holes.

The Half Nipple Rotatable model no.EV03019 are available in the CF size 70 (2.75") having dimensions 69.5,63,38.1 respectively and is composed of 304 stainless steel material. The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket forcing the seal material in outward direction to the flange. The gasket material is completely covered and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.

The Half Nipple Rotatable model no.EV03020 are available in the CF size 114 (4.5") having dimensions 113.6,105,63.5 respectively and is composed of 304 stainless steel material. The high sealing and the low leak rate standard of the CF Flange connection is due to the presence of gasket material.When the CF Flange is properly fitted, the knife edge is pressed onto the flat copper gasket forcing the seal material in outward direction to the flange. The gasket material is completely covered and will not edge out even under the highest degrees. The CF Flange is available with through holes, or tapped bolt holes.
