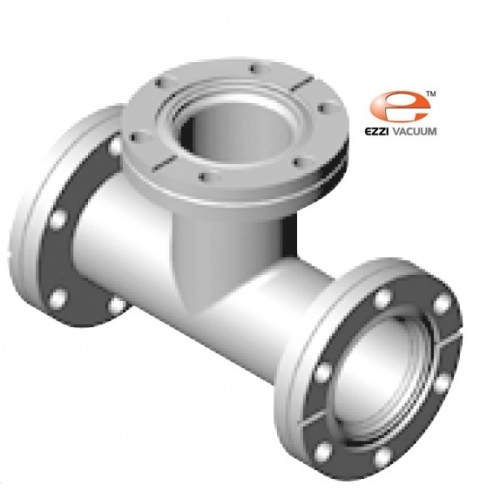

Tee Non-Rotatable model no. EV03045 are available in the CF size 152 (6") having dimensions 109.5,101.6,151.6,219 respectively and is composed of 304 stainless steel material.
CF Flange connection provides high sealing and low leak rate performance due to the presence of gasket material.When the CF Flange is properly organised, the knife edge is pressed onto the flat copper gasket forcing the seal material in the outward direction to the flange.The gasket is completely enveloped and will not edge out even under the highest bakeout degrees.
The CF Flange is offered with through holes, or tapped bolt holes.
