Vacuum Ovens

France Etuves XFL020 primary vacuum oven is suitable for mild drying of sensitive products, degassing, heat treatment of oxidizing materials, etc.

Maximum temperature: 200 ° C / 300 ° C optional Vacuum level : from 0 to -1000 mbar (relative pressure)

Product Description

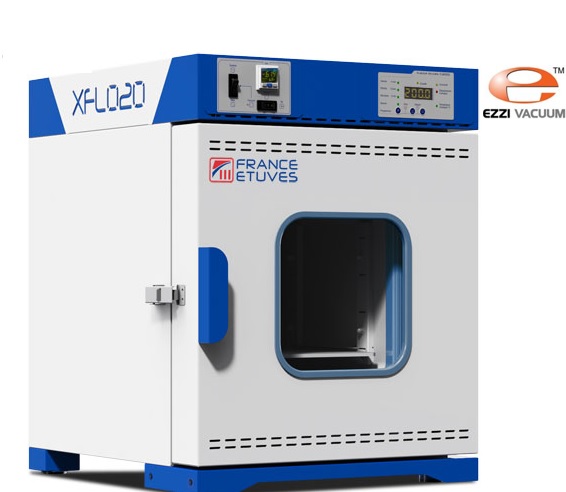

Model : XFL020

Performance
Maximum temperature: 200 ° C (300 ° C optional)
Minimum temperature : Ambient temperature + 20 ° C
Temperature stability: <± 0.2 ° C
Accuracy of the vacuum control: ⩽ 2 mbar (varies depending on the characteristics of the associated vacuum pump)

Vacuum characteristics
Vacuum limit: up to -1000 mbar (relative pressure) or 1 mbar (absolute pressure) Sensor type : Piezo
Measuring range: 0 to -1000 mbar

Dimensions *
Internal volume: 20 liters
Internal dimensions (W x D x H): 250 x 320 x 250 mm
External dimensions (W x D x H): 510 x 575 x 610 mm
Thickness of the safety glass window: 10 mm
* Some options may change the dimensions of the oven

Aluminum loading
trays Number of trays: 1 delivered / 4 maximum in the oven
Tray dimensions WxD: 224 x 280 mm
Useful dimensions of the tray WxD: 216 x 280 mm
Maximum weight allowed per tray: 30 kg
Total maximum weight in the tray oven: 60 kg (weight of trays not included)

Power & Misc
Voltage: 230V ~ 1P 50Hz 16A
Heating power: 800 W (200W per wall)
Total installed power with vacuum pump: 1950 W
Number of doors: 1
Weight: 60 kg

Model: XFM020
Volume of the room:20 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:20 liters
Internal Dimensions (W x D x H):250 x 320 x 250 mm
External Dimensions (L x W x H):510 x 585 x 715 mm

Shelves
Number of shelves:1 livery / 4 maximum
Dimensions Shelf:224 x 280 mm
Max Shelf / Total Weight:30/60 kg

Food & Miscellaneous
Voltage 50 Hz:230V ~ 1P 50 / 60Hz 16A
Standard heating power 200 ° C:800 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:60 kg.

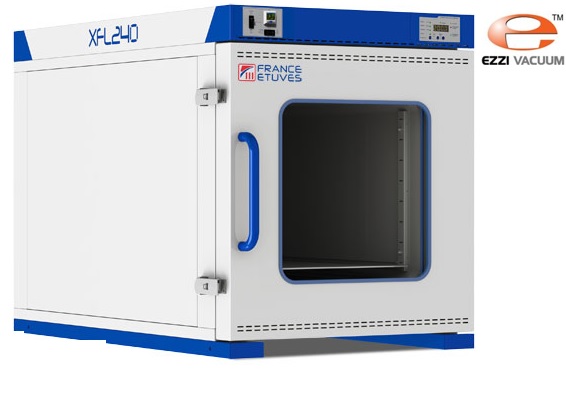

Model:XFL240
Volume of the room:220 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:220 liters
Internal Dimensions (W x D x H):470 x 1000 x 470 mm
External Dimensions (L x W x H):810 x 1347 x 890 mm

Shelves
Number of shelves:1 liveries / 8 maximum
Dimensions Shelf:444 x 960 mm
Max Shelf / Total Weight:30/90 kg

Food & Miscellaneous
Voltage 50 Hz:230V ~ 1P 50 / 60Hz 20A
Standard heating power 200 ° C:3600 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:235 kg.

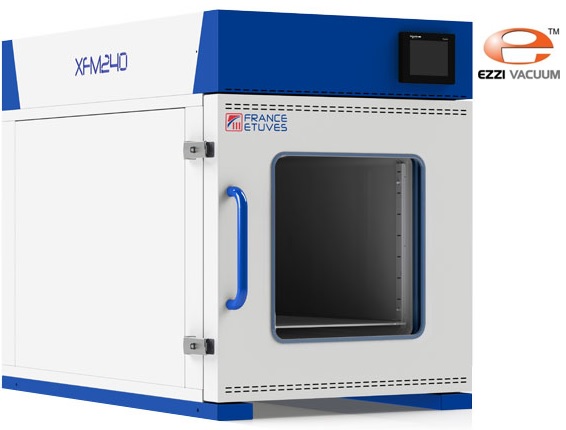

Model:XFM240
Volume of the room:220 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:220 liters
Internal Dimensions (W x D x H):470 x 1000 x 470 mm
External Dimensions (L x W x H):800 x 1320 x 1000 mm

Shelves
Number of shelves:1 liveries / 8 maximum
Dimensions Shelf:444 x 960 mm
Max Shelf / Total Weight:30/90 kg

Food & Miscellaneous
Voltage 50 Hz:230V ~ 1P 50 / 60Hz 20A
Standard heating power 200 ° C:3600 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:235 kg.

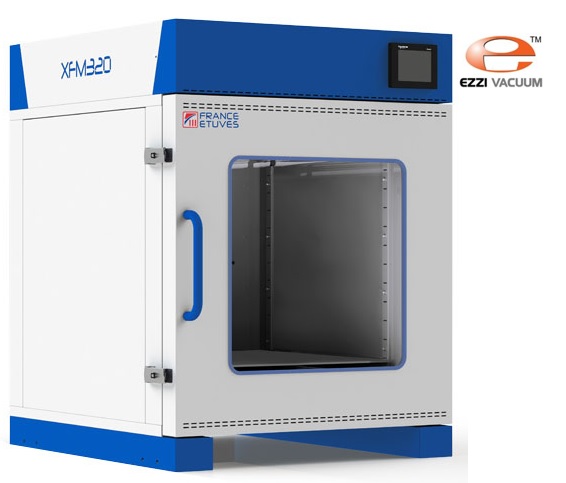

Model:XFM320
Volume of the room:316 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:316 liters
Internal Dimensions (W x D x H):650 x 750 x 650 mm
External Dimensions (L x W x H):992 x 1095 x 1230 mm

Shelves
Number of shelves:1 livery / 11 maximum
Dimensions Shelf:624 x 710 mm
Max Shelf / Total Weight:30/120 kg

Food & Miscellaneous
Voltage 50 Hz:400V ~ 3P + N 50 16A
Standard heating power 200 ° C:6000 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:315 kg.

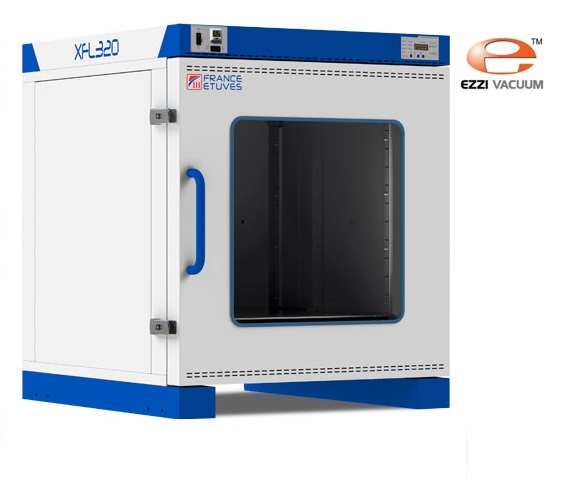

Model:XFL320
Volume of the room:316 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:316 liters
Internal Dimensions (W x D x H):650 x 750 x 650 mm
External Dimensions (L x W x H):992 x 1094 x 1120 mm

Shelves
Number of shelves:1 livery / 11 maximum
Dimensions Shelf:624 x 710 mm
Max Shelf / Total Weight:30/120 kg

Food & Miscellaneous
Voltage 50 Hz:400V ~ 3P + N 50Hz 16A
Standard heating power 200 ° C:6000 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:315 kg.

The XFL050 primary vacuum oven is suitable for gentle drying of sensitive products, degassing, heat treatment of oxidizing materials, etc.

Maximum temperature
200 ° C / 300 ° C optional

Vacuum level
from 0 to -1000 mbar (relative pressure)

Model : XFL050

Performance
Maximum temperature: 200 ° C (300 ° C optional)
Minimum temperature : Ambient temperature + 20 ° C
Temperature stability: <± 0.2 ° C
Accuracy of the vacuum control: ⩽ 2 mbar (varies depending on the characteristics of the associated vacuum pump)

Vacuum characteristics
Vacuum limit: up to -1000 mbar (relative pressure) or 1 mbar (absolute pressure) Sensor type : Piezo
Measuring range: 0 to -1000 mbar

Dimensions *
Internal volume: 51 liters
Internal dimensions (W x D x H): 320 x 500 x 320 mm
External dimensions (W x D x H): 580 x 751 x 680 mm
Thickness of the safety glass window: 10 mm

* Some options may change the dimensions of the oven

Aluminum loading
trays Number of trays: 1 delivered / 5 maximum in the oven
Tray dimensions: 294 x 460 mm
Useful dimensions of the tray in the oven: 285 x 460 mm
Maximum weight allowed per tray: 30 kg
Total maximum weight in the oven: 60 kg (weight of trays not included)

Power & Misc
Voltage: 230V ~ 1P 50Hz 16A
Heating power: 1200 W (300W per wall)
Total installed power with vacuum pump: 2350 W
Number of doors: 1
Weight: 85 kg.

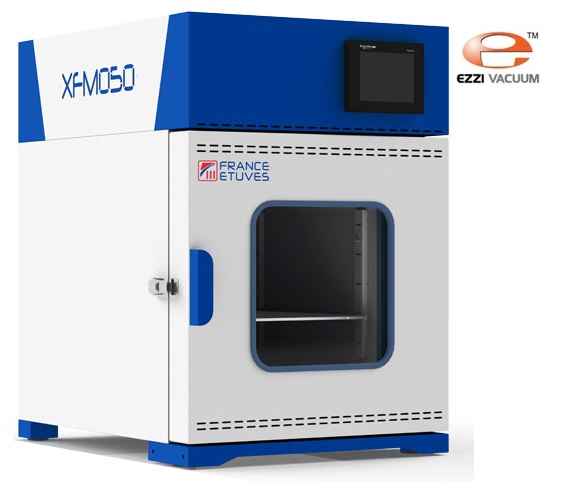

Model: XFM050
Volume of the room:51 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:51 liters
Internal Dimensions (W x D x H):320 x 500 x 320 mm
External Dimensions (L x W x H):580 x 765 x 785 mm

Shelves
Number of shelves:1 livery / 5 maximum
Dimensions Shelf:294 x 460 mm
Max Shelf / Total Weight:30/60 kg

Food & Miscellaneous
Voltage 50 Hz:230V ~ 1P 50 / 60Hz 16A
Standard heating power 200 ° C:1200 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:85 kg.

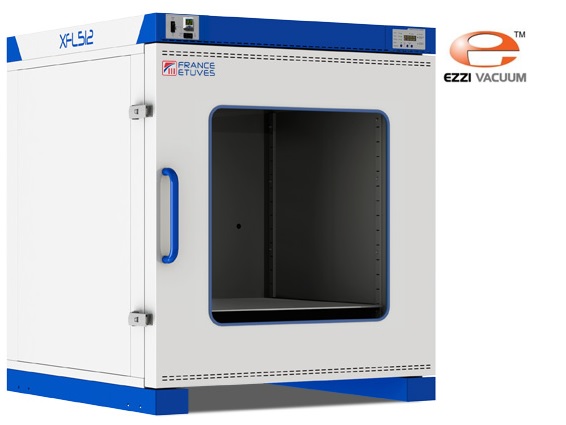

Model:XFL512
Volume of the room:512 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:512 liters
Internal Dimensions (W x D x H):800 x 800 x 800 mm
External Dimensions (L x W x H):1130 x 1150 x 1220 mm

Shelves
Number of shelves:1 liveries / 15 maximum
Dimensions Shelf:772 x 760 mm
Max Shelf / Total Weight:30/200 kg

Food & Miscellaneous
Voltage 50 Hz:400V ~ 3P + N 50Hz 20A
Standard heating power 200 ° C:9000 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:420 kg.

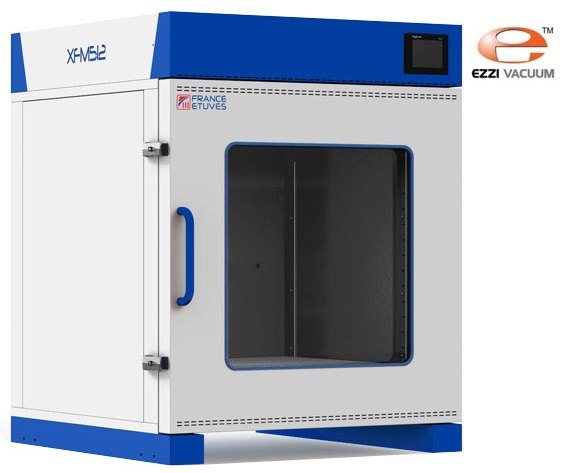

Model: XFM512
Volume of the room:512 liters

Performances
Stability of the temperature:<± 0.2 ° C
Maximum Standard Temperature:200 ° C

Dimensions
Volume of the room:512 liters
Internal Dimensions (W x D x H):800 x 800 x 800 mm
External Dimensions (L x W x H):1130 x 1150 x 1330 mm

Shelves
Number of shelves:1 liveries / 15 maximum
Dimensions Shelf:772 x 760 mm
Max Shelf / Total Weight:30/200 kg

Food & Miscellaneous
Voltage 50 Hz:400V ~ 3P + N 50Hz 20A
Standard heating power 200 ° C:9000 Watts
Number of doors :1
Engine-Turbine Flow:0 m 3 / hour
Weight:370 kg.
