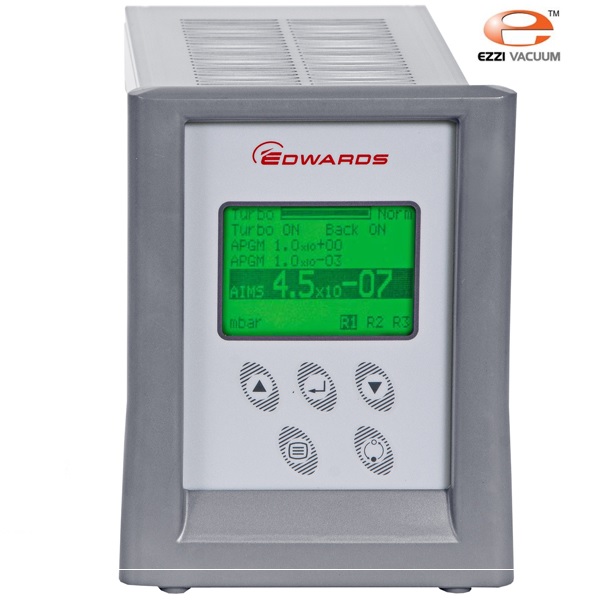

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

A compact turbo controller with a large clear graphical display, an intuitive user interface and serial communications providing full remote control and data logging functions via a new Windows™ based PC program. The controller automatically recognizes and supports one 24 V turbomolecular pump from the EXT/nEXT range. Cooling and vent valve support is provided directly from the controller. Mains backing pumps (up to nXDS20i/RV12) may be controlled via an optional relay box. 2 different power variants are available, 100W or 200W which determines the ramp speed of the turbo pump. In addition 200W models have the ability to power a 24Vdc backing pump such as our XDD1 or nXDS through a 15-way D. Turbo and instrument models add the ability to control up to 3 of our range of Active gauges (excluding IGC & Barocels).

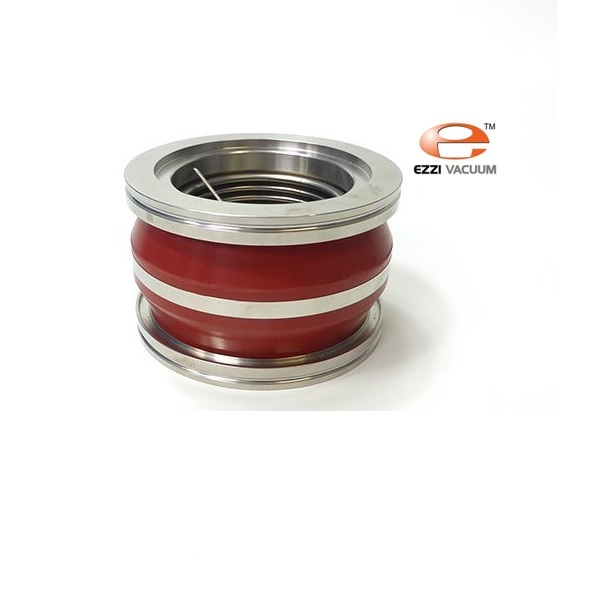

A vibration isolator can be fitted to the inlet-flange of the EXT pump to reduce the transmission of the small amount of vibration generated by the pump to your vacuum system. The vibration isolator has two flanges separated by a flexible stainless steel bellows and an outer rubber anti-vibration collar. The vibration isolator is designed for use with vertically mounted pumps only.

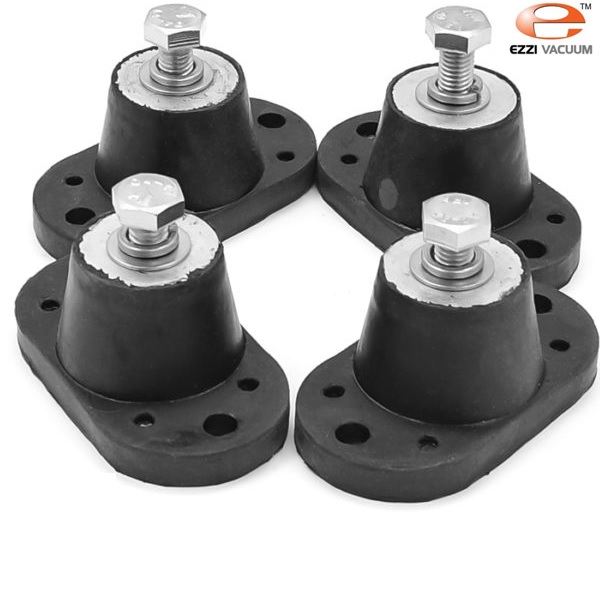

You may need to fit vibration isolators to your pump if you mount it into a frame or a system, if the mounting points are not level or if you need to minimize the transmission of vibration and noise in your application. You must fit flexible bellows or other flexible pipes to the pump inlet and outlet. The height of the isolators reduces by about 1 mm when the pump is fitted.

You may need to fit vibration isolators to your pump if you mount it into a frame or a system, if the mounting points are not level or if you need to minimize the transmission of vibration and noise in your application. You must fit flexible bellows or other flexible pipes to the pump inlet and outlet. The height of the isolators reduces by about 1 mm when the pump is fitted.

You may need to fit vibration isolators to your pump if you mount it into a frame or a system, if the mounting points are not level or if you need to minimize the transmission of vibration and noise in your application. You must fit flexible bellows or other flexible pipes to the pump inlet and outlet. The height of the isolators reduces by about 1 mm when the pump is fitted.

You may need to fit vibration isolators to your pump if you mount it into a frame or a system, if the mounting points are not level or if you need to minimize the transmission of vibration and noise in your application. You must fit flexible bellows or other flexible pipes to the pump inlet and outlet. The height of the isolators reduces by about 1 mm when the pump is fitted.

You may need to fit vibration isolators to your pump if you mount it into a frame or a system, if the mounting points are not level or if you need to minimize the transmission of vibration and noise in your application. You must fit flexible bellows or other flexible pipes to the pump inlet and outlet. The height of the isolators reduces by about 1 mm when the pump is fitted.

Fit a VRX vent-restrictor to your EXT pump if you will vent the pump when the pump speed is above 50% of full rotational speed. The vent-restrictor restricts the flow-rate of the vent gas into the EXT pump. You can also use the VRX to replace the standard restrictor supplied with the PRX10 purge restrictor to obtain a different purge rate.Note that the EXT250M pump is supplied with a VRX10 vent-restrictor fitted in the vent and purge ports.You can fit the vent-restrictor to the TAV vent-valve, to the vent-port adaptor or directly to the vent or purge port of the EXT255H and EXT250M pumps.

Fit a VRX vent-restrictor to your EXT pump if you will vent the pump when the pump speed is above 50% of full rotational speed. The vent-restrictor restricts the flow-rate of the vent gas into the EXT pump. You can also use the VRX to replace the standard restrictor supplied with the PRX10 purge restrictor to obtain a different purge rate.Note that the EXT250M pump is supplied with a VRX10 vent-restrictor fitted in the vent and purge ports.You can fit the vent-restrictor to the TAV vent-valve, to the vent-port adaptor or directly to the vent or purge port of the EXT255H and EXT250M pumps.

Fit a VRX vent-restrictor to your EXT pump if you will vent the pump when the pump speed is above 50% of full rotational speed. The vent-restrictor restricts the flow-rate of the vent gas into the EXT pump. You can also use the VRX to replace the standard restrictor supplied with the PRX10 purge restrictor to obtain a different purge rate.Note that the EXT250M pump is supplied with a VRX10 vent-restrictor fitted in the vent and purge ports.You can fit the vent-restrictor to the TAV vent-valve, to the vent-port adaptor or directly to the vent or purge port of the EXT255H and EXT250M pumps.
